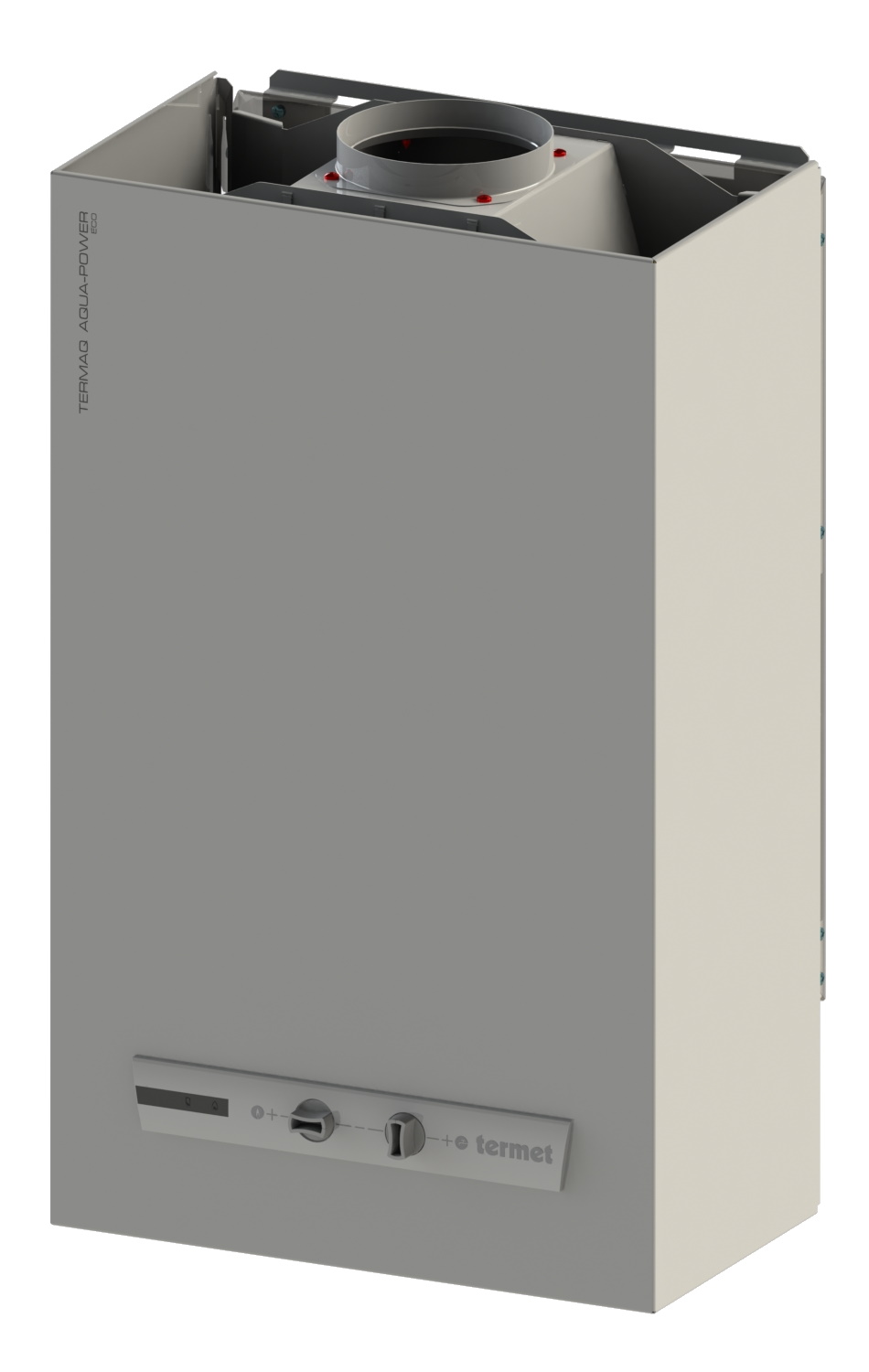

.TERMAQ ELECTRONIC ECO GE-19-02

Termaq Electronic Eco gas water heaters are modern devices used to prepare domestic hot water. Intended for installation in the kitchen or bathroom of both old and modernized buildings. Thanks to the innovative design of the exchanger and burner, the heaters meet the requirements of the ErP Directive (nitrogen oxide emissions below 56 mg/kWh). These devices are therefore ecological and economical, and the attractive design makes them a decoration of the most modern interiors.
  • open combustion chamber
  • innovative water-cooled burner which ensures low emission of CO and NOx in accordace with ErP (NOx ≤ 56 mg/kWh)
  • smooth automatic power regulation depending on water flow rate
  • water heating energy efficiency class: A
  • low water flow activating the device (about 3,2 dm3/min)
  • complete system of protection: against lack of chimney draught, against flue gas discharge into the room
  • modern design ensures long-lasting, economic and failure-free operation
  • no pilot flame, which results in lower gas consumption and savings for the user
Parameter Value
Ignition electronic from batteries
Nominal heat load 21,8
Nominal thermal power 19,2
Minimal thermal power 8,0
Minimal heat load 9,1
Thermal efficiency 88
Water operating pressure 0,2÷10,0
Hot water outlet (Δt ≤ 50°C) 3,2÷5,7
Hot water outlet (Δt ≤ 25°C) 5,7÷11,5
Maximum temperature of outlet water 65
Energy efficiency of water heating ηwh 79
Energy efficiency class of water heating A
Load profile M
Sound power level LWA 53
Dimensions 590x360x230
Flue connection (internal diameter) 117
Heater weight 9,5
Gas connection G 3/4
Cold water connection G 1/2
Hot water connection G 1/2

The manufacturer reserves the right to change the device's structure which do not have a significant impact on functional and technical characteristics of a product.
